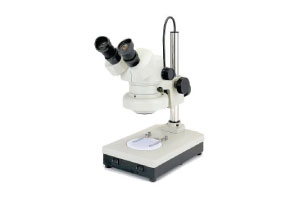

DSZ-44PITF
| Stand type | PITF (Pole type (303mm)) |
| Incident light | Fluorescent Lamp 9W |
| Transmitted light | Fluorescent Lamp 5W |
| Stage plate | Round plastic stage (Ø = 80mm) |
| Base | 180mm x 265mm |
| Height | 328mm |
| Net weight | 5.4 kg |
| Transmitted & incident lights are built in the stand. The incident light is composed of 9W fluorescent lamp having a long life and a low temperature. |
| The DSZ-44 series features a zoom magnification of 10x to 44x (zoom ratio 4.4:1) with standard eye-pieces 1Ox. A wide range of magnification from 2.5x to 140.8x is available with optional lenses. No. DSZ-44PITF |
| Models | DSZ-44PITF |
| Magnification (field of view) |
10x to 44x (field of view : 23mm to 5.2mm) |
| Objective Lense | 1.0x to 4.4x (zoom ratio : 4.4:1) |
| Eyepieces | Wide Field 10x (DSW10x) (field number : 23) |
| Optical Body | 360° rotatable binocular type, 45° inclined eyepiece tube |
| Working Distance | 90mm |
| Interpupillary Distance |
52mm to 75mm |
| Diopter Adjustment | +5.6D -7.2D on both eyepiece tubes |
| Accessories | Rubber eyeguard, Tension control pin, Dust cover, Spare bulb (Tungsten Lamp for stand type T only) |
